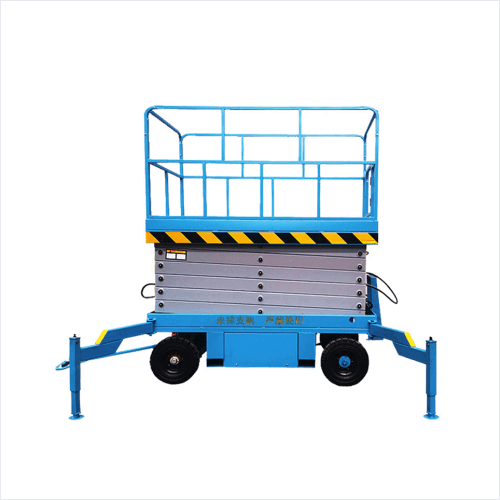

Towable scissor lifts platform adopts high-strength manganese steel structure, four wheels are easy to move, the work surface is wide, and the bearing capacity is high.
It can support multiple people to work at the same time. It makes aerial work safe and more efficient.
Product Features
· The conventional configuration is AC power, and battery power can be selected
· Scissor Aerial Work Platform Features: lifting mechanism of high-strength
· Manganese steel rectangular tube production. With a safety device to prevent
· Overloading of the lift. Provided to prevent hydraulic line rupture safety
· Protection valve. Emergency lowering device in case of a power outage.
Product Parameters
Model
GTJY0845
GTJY1045
GTJY1232
Capacity(kg)
450
450
320

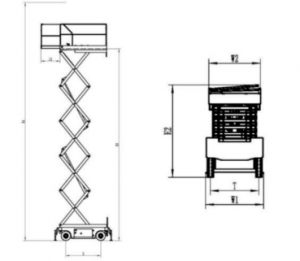

Max. Platform Height (m)H3
8
10
12
Max. Working Height (m)H4
10
12
14
Platform Size (m)L2*W2
2.2×1
2.2×1
2.55×1
Platform Extension Size(m)L3
0.9
0.9
0.9

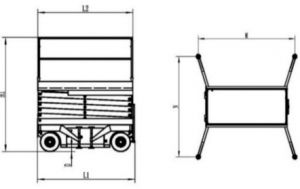

Overall Length (m)L1
2.26
2.26
2.61
Overall Width (m) W1
1.12
1.12
1.12
Overall Height (m) H2
1.67
1.79
1.91
Overall Height (m) H1
2.53
2.65
2.77
Overall Height (with extension platform) (m)
2.08
2.20
2.32
Supporting leg open (M/N)(m)
2.7×2.6
2.7×2.6
3×2.9
Ground Clearance (m)D
0.1
0.1
0.1
Wheelbase (m) S
1.64
1.64
1.99
Wheel-base (m) T
0.94
0.94
0.94
Front wheels size
448×122
448×122
448×122
Real wheel
448×122
448×122
448×122
Battery
2-12V/120Ah
2-12V/120Ah
2-12V/120Ah
Integrated charger
24V/15A
24V/15A
24V/15A
Lifting Motor (AC)
220V/3KW
220V/3KW
220V/3KW
Lifting Motor (DC)
24V/3KW
24V/3KW
24V/3KW
Lifting/Lowering time (S)
50/45
60/55
72/67
Self weight (kg)
1700
1850
2150
Product Advantage
1. Elevating structure adopts rectangle tube of high-intensity manganese steel for manufature.
2. Safe protection device to prevent overload of elevating platform.
3. Equipped with anti-explosion valve for avoiding the explosion of tube.
4. Emergency descending device in the sudden power cut situation.
