Self-propelled Stock Picker

  • Load capacity:300kg
  • Working height: 4m-6.5m
  • Platform height: 2m-4.5m

Product Description

Self-propelled stock picker is specially designed for indoor outdoor aerial works with lower height and narrow space. With compact sizes, light weight and strengthened structure, it is portable and easy to operate.

Self-propelled stock picker is one kind of material handling equipment which are widely used in warehouse and supermarket. Order picker is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency.

Standard Configuration

Controller temperature protection;

Proportional controls;

Battery charge indicator;

Emergency stop button;

Emergency lowering system;

Charger protection;

Overload limited;

Low voltage alarm;

Safety brackets.

Product Advantage

◆The light weight and maneuverability make it convenient to use in supermarket and warehouse.

◆Zero-turn radius and compact design (1.53m×0.70m) provide access in and around confined work areas.

◆On-board diagnostice help operators troubleshoot on the fly and make adjustments in the field to maximize uptime.

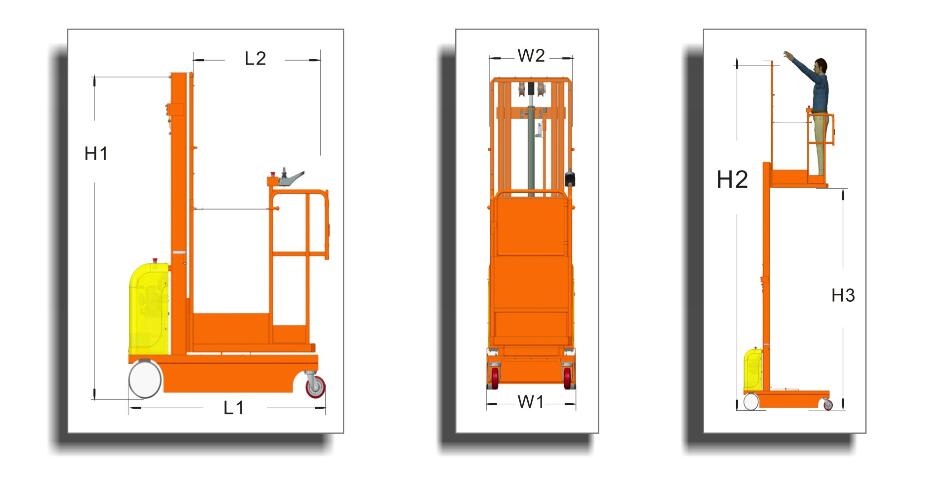

Product Parameters

Model GOPZ202 GOPZ302 GOPZ3.502 GOPZ3.503 GOPZ403 GOPZ4.503
Load Capacity 300kg 300kg 300kg 300kg 300kg 300kg
Platform Height (H3) 2m 3m 3.5m 3.5m 4m 4.5m
Working Height (H2) 4m 5m 5.5m 5.5m 6m 6.5m
Overall Height(H1) 1.42m 1.93m 2.15m 1.64m 1.82m 1.98m
Overall Width (W1) 0.7m 0.7m 0.7m 0.7m 0.7m 0.7m
Overall Length (L1) 1.53m 1.53m 1.53m 1.53m 1.53m 1.53m
Maximum slope 1.5-3° 1.5-3° 1.5-3° 1.5-3° 1.5-3° 1.5-3°
Gradeability 30% 30% 30% 30% 30% 30%
Maximum drive

speeds-stowed

4km/h 4km/h 4km/h 4km/h 4km/h 4km/h
Maximum drive

speeds-raised

1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Ground Clearance 0.04m 0.04m 0.04m 0.05m 0.05m 0.05m
Wheel Base 1.24m 1.24m 1.24m 1.24m 1.24m 1.24m
Front wheels 6in 6in 6in 6in 6in 6in
Drive wheels Φ250*80 Φ250*80 Φ250*80 Φ250*80 Φ250*80 Φ250*80
Betteries 2-12v/120Ah 2-12v/120Ah 2-12v/120Ah 2-12v/120Ah 2-12v/120Ah 2-12v/120Ah
Integrated Charger 24v-15A 24v-15A 24v-15A 24v-15A 24v-15A 24v-15A
Drive motors 2-24V/0.5KW 2-24V/0.5KW 2-24V/0.5KW 2-24V/0.5KW 2-24V/0.5KW 2-24V/0.5KW
Lifting motors 24VDC/1.5KW 24VDC/1.5KW 24VDC/1.5KW 24VDC/1.5KW 24VDC/1.5KW 24VDC/1.5KW
Self weight 400kg 574kg 588kg 655kg 665kg 675kg
Platform Size 0.95*0.64m 0.95*0.64m 0.95*0.64m 0.9*0.64m 0.9*0.64m 0.9*0.64m
Up/Down Speed 12/14sec 20/22sec 24/26sec 17/19sec 20/22sec 23/25sec
